Today, in the rapidly growing construction market, the ability to successfully complete the construction of intricate buildings in the stipulated time and the allocated cost is determined by accuracy and team spirit. MEP or Mechanical, Electrical, and Plumbing is the spine of the functioning of any building. When those systems are not combined effectively in the design and construction process, the outcome might be unaffordable delays, conflicts of design or post-construction complications.
Implies that all elements of MEP become compatible with the structural and architectural elements of a building or facility. The blog is a step-by-step continuum over the major stages of the coordination process, starting with the initial clash identification and concluding with the issuance of such as-built deliverables. Regardless of being a contractor, architect, engineer, or developer, most of us need to comprehend the basics of the MEP procedures to achieve successful project delivery.

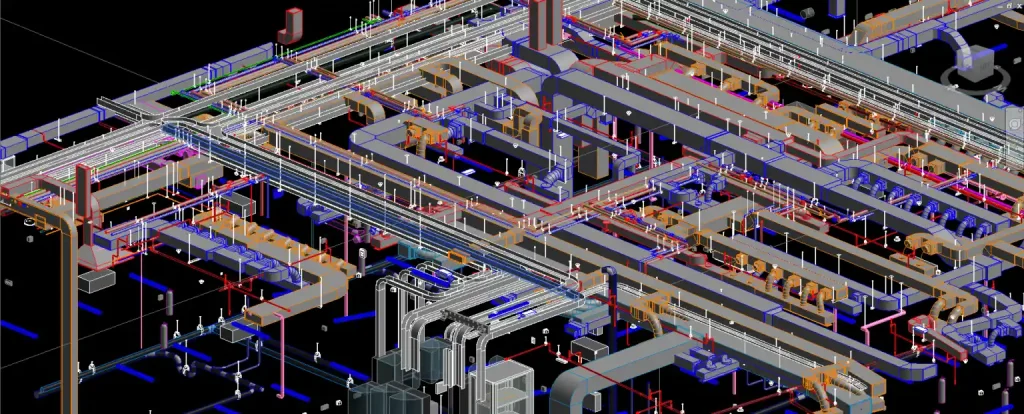

What Is MEP Coordination?
MEP coordination is a form of collaboration between two or more parties to incorporate the mechanical, electrical, and plumbing in the construction project. Its main objective is to identify and produce solutions to clash problems between various building systems prior to the actual construction start-up, hence, keeping remakes to a minimum on the construction site as well as keeping all building systems within the architectural and structural limitations.
This process typically involves:

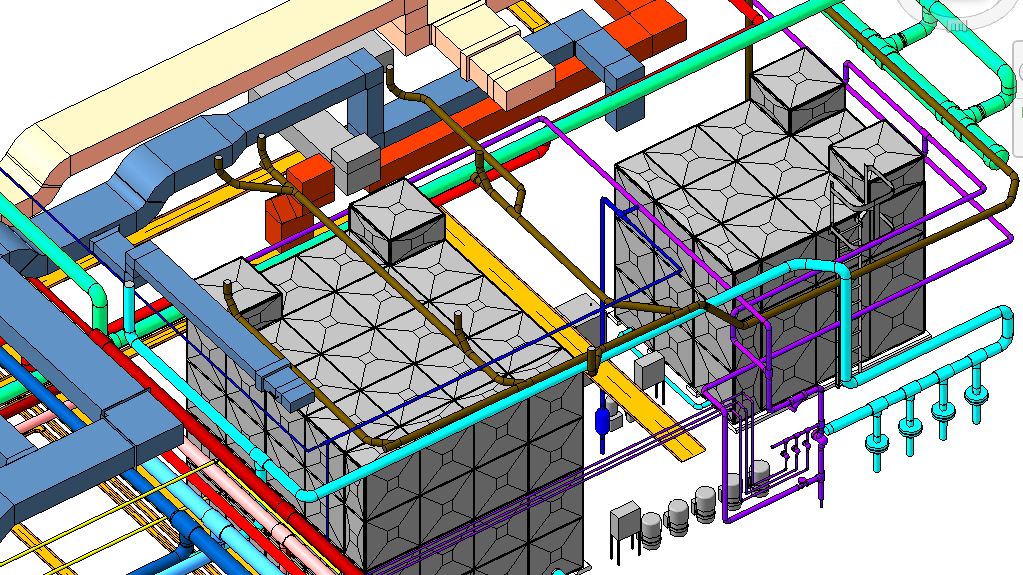

- 3D modeling of all MEP components using BIM tools (like Revit)
- Overlaying MEP models onto the architectural and structural models
- Identifying clashes (e.g., a duct running through a beam or sprinkler heads colliding with light fixtures)
- Resolving conflicts through design revisions and coordination meetings
The Role of BIM in MEP
The BIM has transformed the MEP process. It also delivers smart, online models of the building and the systems, allowing real-time collaboration, conflict resolution, and better visualization.
Key Benefits of BIM in MEP:
- 3D Visualization: BIM enables users to observe the way of the interaction between mechanical, electrical, and plumbing systems in real space, which is likely to diminish guesswork and interpretation mistakes by project stakeholders.
- Interdisciplinary Collaboration: Architects, engineers, and contractors have the ability to work on a common model and update simultaneously and monitor design development as it occurs.
- Data-Driven Decisions: The BIM models also possess metadata like the flow rates, specification of materials, and circuit loads etc. The information is useful to assist in making cross-disciplinary decisions.
- Clash Detection and Resolution: Software such as Revit and Navisworks automates problem detection, identifies problems earlier, and easily tracks the problem.
- 4D and 5D Modeling: Integrate the time (4D) and cost (5D) data in the models of MEP to improve construction planning and budgeting.
BIM transforms MEP from a reactive task to a proactive strategy, supporting streamlined workflows and optimized outcomes.
The Importance of Early Coordination in the Design Phase
The earliest a project team can make is commencing coordination during the early design phase is one of the smartest things to do. Delaying clash or conflict detection to the construction phase will cause costly rework, delays, and material wastage.
Here’s why early coordination matters:
- Design Intent Validation: Early coordination makes the engineer keep their design in touch with the reality of structure and space. As an illustration, an HVAC system might have to be resized or rerouted so that the HVAC system does not conflict with structural beams.
- Cost Optimization: Conflict finding and resolution that occurs in the digital model is infinitely cheaper than construction time changes and post-construction changes. It enables the project team to take intelligent design decisions, eliminate the cost of redesign, and manage material and labor costs.
- Time Savings: Early clash detection saves the current calendar of construction by removing field adjustments and coordination delays. The multiple crews have an organised collection of drawings based on which they can work, thereby minimising RFIs (Request For Information) and last-minute changes.
- Streamlined Collaboration: MEP at an early stage will encourage cross-organizational cooperation between the design professionals such as architects, engineers, and contractors; this would enhance communication and reduce erring practices in the future.
In short, beginning coordination early leads to smoother project execution, higher quality outcomes, and greater confidence across all stakeholders.
Clash Detection: The First Line of Defense
One of the most critical aspects of MEP is clash detection, the process of identifying spatial conflicts between MEP components and other building elements before they occur on-site. Think of clash detection as a preventive measure that saves time, money, and headaches during construction.
Types of Clashes
- Hard Clashes: When two components physically occupy the same space (e.g., a duct intersecting a beam).
- Soft Clashes: When an element violates clearance requirements, like a pipe too close to a wall, hindering maintenance access.
- Workflow or 4D Clashes: When the scheduling or sequencing of components leads to logistical conflicts during installation.
How Clash Detection Works
Using Building Information Modeling (BIM) tools like Navisworks, Revit, or BIM 360, MEP models are digitally combined with structural and architectural models. These tools automatically identify overlapping geometries or clearance violations, generating a list of clash points with visuals and location data.
Benefits of Early Clash Detection
- Prevents costly rework
- Supports smooth scheduling and installation
- Increases overall build accuracy
- Improves inter-team communication
By resolving these issues in a virtual environment, teams can avoid last-minute surprises in the field and maintain project momentum.
Coordination Meetings and Issue Resolution Workflows
Once clashes are identified, the next step is resolving them collaboratively through structured coordination meetings and issue-tracking workflows. These meetings are the backbone of effective MEP, where teams align on design changes and decision-making.
Structure of Coordination Meetings
- Frequency: Typically weekly or bi-weekly, depending on project size and stage
- Participants: MEP engineers, BIM modelers, general contractors, subcontractors, and coordination managers
- Agenda: Review detected clashes, prioritize critical ones, propose design adjustments, and assign tasks for resolution
Issue Tracking Tools
Modern coordination workflows rely on digital platforms like:
- BIM Track
- Revizto
- Autodesk BIM Collaborate
These platforms allow real-time issue tracking, status updates, comments, markups, and model sharing among all parties. Each clash is assigned an owner and a deadline, ensuring accountability and follow-through.
Benefits of an Organized Workflow
- Faster issue resolution
- Clear accountability and documentation
- Better communication across teams
- Reduced likelihood of repeating the same error
With structured coordination meetings and robust tracking tools, the coordination process becomes efficient, transparent, and aligned with the project schedule.
Coordination Drawings and Composite Models
After resolving all critical clashes, the next deliverables in the coordination process are coordination drawings and composite models, key assets used for guiding field installation teams.
Coordination Drawings
These are 2D plans and sections extracted from the coordinated 3D model. They show the final routing of MEP systems with resolved clashes and exact locations, sizes, elevations, and support requirements.
Typical coordination drawing types include:
- Mechanical and plumbing floor plans
- Reflected ceiling plans (RCPs) showing electrical and HVAC elements
- Cross-sections showing multi-trade routing
- Equipment layouts and access zones

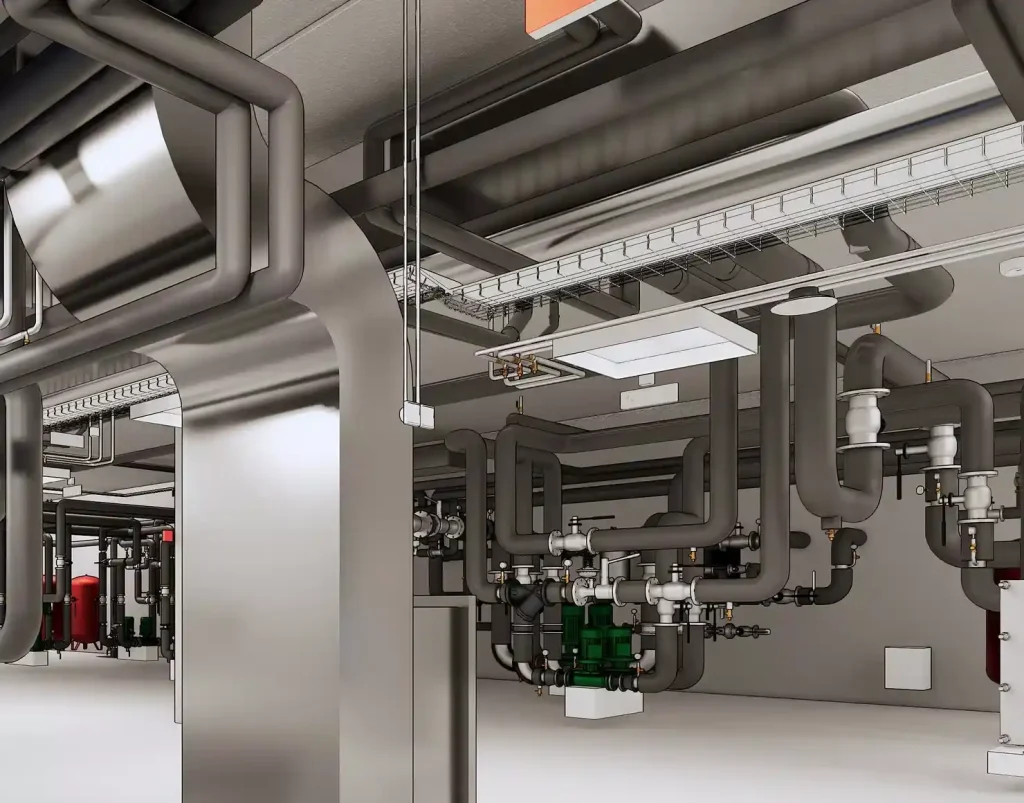

Composite Models
These are the fully integrated 3D BIM models where MEP, structural, and architectural systems coexist without conflict. They’re used for:
- Visualizing the entire building system in one space
- Verifying installation feasibility
- Generating accurate quantity takeoffs
- Supporting on-site layout and prefabrication
Why These Deliverables Matter
- They provide field crews with reliable, constructible drawings
- Help reduce change orders and RFIs
- Improve installation speed and accuracy
- Enable early procurement and prefabrication
Ultimately, coordination drawings and composite models are the tangible results of successful MEP , bridging the gap between design and construction with precision and clarity.
Field Verification and Site Coordination
Even with the most precise models, there’s always a gap between virtual design and real-world conditions. That’s why field verification and site coordination are essential steps in the MEP process.
What Is Field Verification?
It involves comparing the digital model with actual site conditions to confirm alignment, catch discrepancies, and make real-time adjustments. This step ensures that coordinated models are practical and buildable on-site.
Tools Used:
- Laser Scanning / Point Clouds: Create accurate 3D maps of existing conditions to overlay on BIM models.
- Reality Capture Tools: Devices like drones, scanners, or 360-degree cameras offer current, detailed site data.
- Tablet-Based Review Platforms: Field teams can access live BIM models, redline drawings, and coordination updates from mobile devices.
Why Site Coordination Is Crucial:
- Ensures prefabricated elements fit properly on arrival
- Validates ceiling heights, mechanical room layouts, and conduit runs
- Reduces change orders during installation
- Enables quick response to unforeseen site constraints
By incorporating field verification into the MEP workflow, project teams can maintain accuracy and avoid disruption during construction.
Conclusion
MEP is no longer optional in modern construction—it’s a cornerstone of successful project execution. From early-stage clash detection to the delivery of precise as-built documentation, every step in the coordination process plays a vital role in preventing delays, reducing rework, and optimizing cost.
By embracing BIM technology, involving stakeholders early, and following structured workflows, teams can ensure their MEP systems are not only technically sound but also seamlessly integrated into the building fabric. Whether you’re a contractor, designer, or facility owner, mastering the fundamentals of coordination sets the foundation for quality, efficiency, and long-term building performance.
