Accuracy is all in reinforced concrete construction. Every steel bar that is set in a beam, column, or slab could be calculated, not only in numbers but also in shape, length, and location. Here is when the bar-bending roster is introduced. A bar bending schedule (usually shortened to BBS) is a list that contains details of the type, size, length, shape, and number of reinforcement bars (rebars) contained in structural elements.
A bar bending schedule is an important document that is utilised by the contractors, quantity surveyors, steel fabricators, and site engineers. It combines the structural design drawing and the reinforcement construction in situ. No matter whether you build a small house or a big commercial building, a properly developed BBS will enhance the efficiency of the entire project, minimize the wastage of materials and cost.
The present blog is a stepwise method of learning, preparing, and verifying the bar-bending schedule. It will help us to actually go through why we do it, what it contains, how to arrive at answers, and the mistakes we make, which makes it the perfect tutorial for civil engineering professionals and students.
Key Concepts and Terminology
Before proceeding further into how to create a bar bending schedule, it is important to familiarise oneself with some of the basic terminologies and requirements you are likely to come across during the preparation of the BBS:
- Rebar (Reinforcement Bar): Steel bars placed in concrete to resist tensile forces.
- Cutting Length: The total length of a rebar after considering bends, hooks, and laps.
- Bend Deduction/Allowance: Extra length added or subtracted to account for bar bends.
- Lap Length: The length where two bars overlap to ensure continuity in tension zones.
- Hooks and Bends: The curved ends of bars that help anchor them into the concrete.
- Cover: The minimum distance between the reinforcement bar and the surface of the concrete, to protect against corrosion.
- Shape Code: Standardized representations of bar shapes as per design codes (like IS 2502 or BS 8666).
Benefits of a Bar–Bending Schedule
A bar bending schedule is more than just a list—it’s a powerful tool that brings multiple operational, financial, and quality benefits to a construction project. Here are the major advantages:
- Accurate Steel Estimation: By calculating the precise cutting length and quantity of each bar type, a bar bending schedule helps avoid over-ordering or under-ordering of reinforcement steel, leading to more efficient procurement.
- Minimized Material Wastage: A detailed BBS ensures that every bar cut and bent at the site follows exact measurements, reducing off-cuts and preventing duplication.
- Improved Cost Control: Since steel cost constitutes a major portion of the construction budget, a well-prepared BBS allows project managers to monitor, control, and audit steel consumption against budgeted quantities.
- Enhanced Construction Efficiency: With a BBS, the site team can plan daily steel cutting and bending operations, helping fabricators and steel fixers work more efficiently by reducing guesswork.
- Better Communication and Documentation: A BBS serves as a common language between design engineers, contractors, and on-site personnel, making inspections, approvals, and billing transparent and traceable.

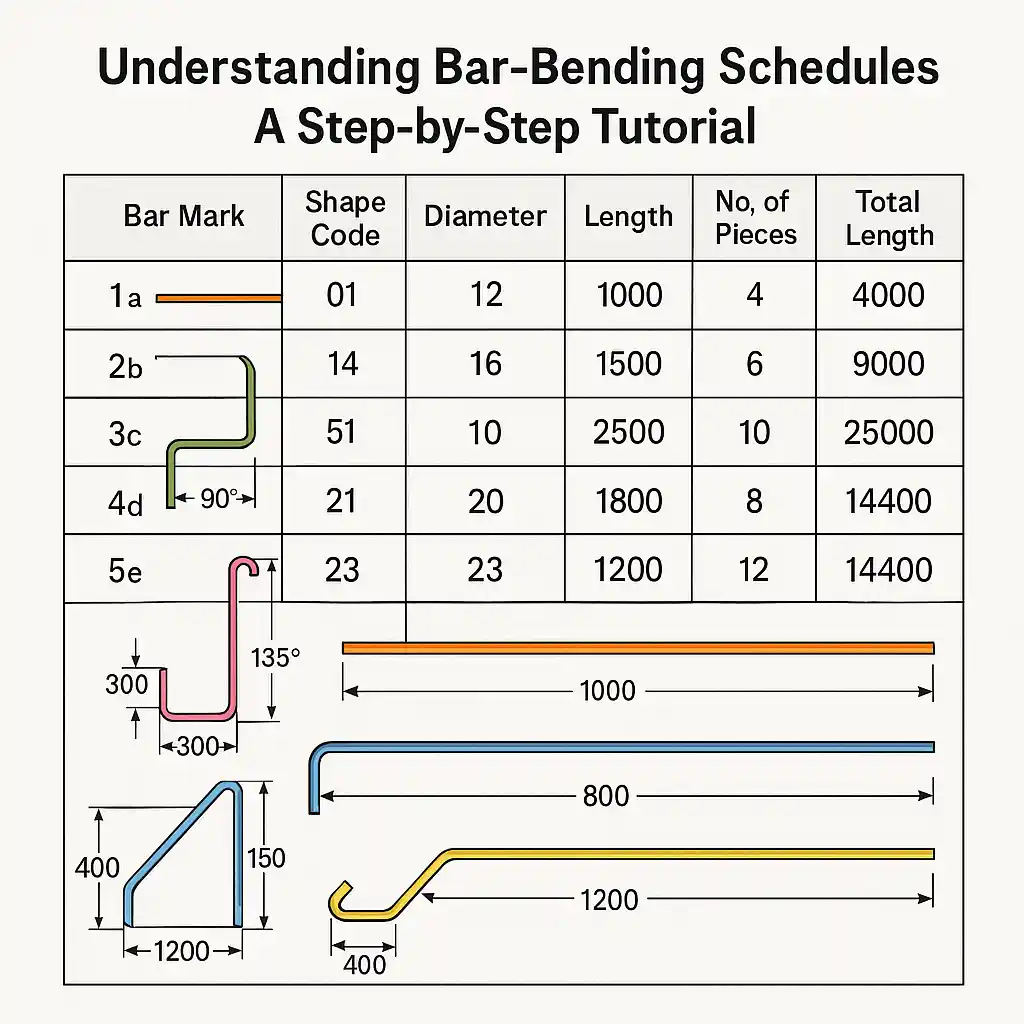

Components of a Typical Bar Bending Schedule
A well-prepared bar bending schedule is a tabular document that summarizes key information about reinforcement bars in a structured format. Each row in the BBS corresponds to a specific bar type, shape, or usage area. Here are the key components found in a standard bar bending schedule:
- Bar Mark or Reference Number: Unique identifier for each bar or set of bars as referenced in construction drawings.
- Bar Diameter: Thickness of the rebar, usually in millimeters (e.g., 8mm, 12mm, 16mm).
- Bar Shape and Shape Code: Geometric configuration (e.g., straight, L-shaped, stirrup) with shape codes per IS 2502 or BS 8666.
- Cutting Length: Total required length after accounting for bends, hooks, and lap lengths.
- Quantity (Number of Bars): Total number of identical bars needed.
- Total Length of Steel: Cutting Length × Quantity.
- Unit Weight of Bar: Weight per meter of the bar, calculated as
D²/162(D = diameter in mm). - Total Weight: Total Length × Unit Weight.
- Remarks/Notes: Any specific instructions, such as hook angles, bending tolerances, lap splice locations, or installation notes.
Understanding Shapes and Bar Bending Codes
Accurate identification and categorization of bar shapes and sizes are critical. Each shape serves a unique structural purpose and must be correctly represented and measured.
- Straight Bars (Shape Code 00): No bends; used in beams and slabs.
- L-Shaped Bars (Shape Code 01): Used at corners or column footings.
- U-Shaped Bars (Shape Code 02): Closed stirrups or wall ties.
- Cranked Bars (Shape Code 05): Used in slabs with alternate bending for moment resistance.
- Stirrups (Shape Codes 20, 21, etc.): Closed loops for shear resistance in columns and beams.
Hooks and Bend Allowances:
- 90° hook = 8d (d = bar diameter)
- 135° hook = 10d
- 180° bend = 16d
Tools & Software for BBS Preparation
While manual methods are still in use, many professionals today prefer to automate bar-bending schedule preparation using digital tools. These tools enhance speed, accuracy, and data management:
- Spreadsheet Templates (Excel): Quick calculations, customization, and built-in formulas for cutting lengths and weights.
- AutoCAD with Excel Linkage: Prepare rebar drawings in AutoCAD and export schedules via LISP routines or plugins.
- BIM-Based Tools: Revit extensions, Tekla Structures, ZWCAD, Staad RCDC, CYPECAD for high-detail rebar modeling and scheduling.
- Mobile Apps: On-site real-time access to BBS for cutting and fabrication teams.
Conclusion
A well-prepared bar-bending schedule is one of the most powerful tools in modern concrete construction. It bridges the gap between design and execution, streamlines steel procurement, minimizes wastage, and ensures structural safety. From understanding bar shapes and calculating lengths to using digital tools and following best site practices, mastering the bar bending schedule process can significantly improve project efficiency and reduce costs. Whether you’re a student, site engineer, or project manager—investing in BBS knowledge pays off in every pour of concrete.
