Summary
Rebar detailing in Revit helps structural teams place and manage steel bars inside concrete foundations, columns, beams, walls, and slabs.
A well-made model can support reinforcement plans, sections, bar schedules, quantity checks, and 3D coordination. It can also help teams find clashes and crowded areas before construction starts.
This article explains the main workflow, the tools used for each concrete element, and the checks needed before drawings are issued.
5 Key Takeaways
- Start with approved design data and a stable concrete model.
- Set concrete cover before placing large groups of bars.
- Use standard bar shapes for regular reinforcement layouts.
- Check busy areas in plans, sections, and 3D views.
- Review the model, schedules, and drawings before issue.
Introduction
Rebar gives strength to concrete. It helps foundations, columns, beams, walls, and slabs carry loads safely.
Poor rebar details can cause major site problems. Bars may clash with openings, sleeves, anchor bolts, or other bars. Workers may also have too little space to install the steel or pour concrete.
These issues can lead to delays, wasted material, and drawing changes. Rebar detailing in Revit gives teams a shared 3D model. Engineers, BIM modelers, contractors, and fabricators can use it to study reinforcement before work begins.
Teams that need help with this process can review the structural modeling and detailing work offered by Strand Consulting Corporation. Revit supports the process, but it does not replace structural design. Bar sizes, spacing, cover, laps, and anchorage must come from approved engineering information.
What Is Rebar Detailing in Revit?
Rebar detailing in Revit is the process of placing and managing steel reinforcement inside concrete elements. The model may include main bars, stirrups, ties, starter bars, dowels, hooks, laps, couplers, and extra bars around openings.
Each bar can hold useful data, such as:
- Bar size
- Bar shape
- Bar length
- Bar quantity
- Bar spacing
- Concrete host
- Rebar partition
- Bar mark
This information can appear in plans, sections, 3D views, and schedules.
For example, one beam bar may appear in a beam elevation and a bar schedule. When the modeled bar changes, the linked views can also show the change.
Teams can also use professional Revit BIM modeling services when they need help building or managing a coordinated structural model.
Why Use Revit for Reinforcement Modeling?
Better Coordination
A 3D model helps the team see how reinforcement fits with other building parts. Bars can be checked against openings, pipe sleeves, anchor bolts, steel plates, cast-in channels, structural steel, and nearby reinforcement.
This is useful in busy areas such as:
- Beam-column joints
- Pile caps
- Core walls
- Transfer beams
- Large slab openings
Finding a space problem in the model is often easier than fixing it after steel has reached the site.
Clearer Drawings and Schedules
Revit can create reinforcement plans, sections, elevations, and schedules from the same structural model. This helps keep drawing information linked to the modeled bars. The model still needs checking. Wrong bar data may appear in more than one drawing or schedule if the error is not found.
Useful Quantity Information
A checked reinforcement model can show bar counts, sizes, lengths, and estimated steel weights. This information may help with cost checks, material planning, and site work. Final material orders may also need waste, stock lengths, lap allowances, couplers, and local fabrication rules.
Rebar Detailing Workflow in Revit
1. Define the Purpose of the Model
Start by deciding how the rebar model will be used. Some projects only need design drawings and BIM coordination. Other projects may also need quantities, bar bending schedules, or fabrication information.
The model detail should match the planned use. A design model may not need every small bar connection. A fabrication model may need exact bar lengths, hooks, laps, couplers, and marks.
The project team should agree on:
- Which elements need modeled reinforcement
- Which details can remain in 2D
- Who will provide the design data
- Who will model the bars
- Who will check the work
- When bar marks will be fixed
Projects with several teams may also benefit from early BIM consulting to set file rules, model uses, and team duties.
2. Review the Structural Design
Rebar modeling should follow approved engineering information. Before placing bars, confirm the required sizes, spacing, layers, cover, lap lengths, hooks, and anchorage.
The modeler should also know where couplers, construction joints, and extra bars are needed. Do not guess when information is missing. Record the open point and send it to the structural engineer. This keeps design choices clear and stops hidden assumptions from entering the model.
3. Check the Concrete Model
Every reinforcing bar needs a correct concrete host. Review the size and position of foundations, columns, beams, walls, slabs, stairs, and openings.
Check levels, slopes, offsets, joins, and element directions. A small concrete change can affect many bars. A deeper beam, for example, may change the stirrups, bottom bars, side bars, and support bars.
Start detailed reinforcement work after the main concrete model reaches a stable review stage.
4. Coordinate Openings and Cast-In Items
Openings are a common cause of rebar changes. Check the structural model against current architectural, MEP, and steel models. Review pipe sleeves, floor holes, wall openings, anchor plates, equipment bases, steel connections, and cast-in channels.
An opening may cut through the main reinforcement. The engineer may then need to move bars or add new reinforcement around it. The BIM modeler should not decide how to replace cut bars without approval.
5. Set Concrete Cover
Concrete cover is the space between a reinforcing bar and the outer concrete face. Correct cover helps protect steel from fire, water, and damage.
Cover values may change based on the element and its location. A foundation may need more cover than an indoor slab.
Create clear cover settings for:
- Foundation bottoms and sides
- Slab tops and bottoms
- Beam sides and bottoms
- Columns
- Inner and outer wall faces
Apply the right cover before adding large groups of bars. Always check the result in a section. A bar may look correct in plan but still be at the wrong height.
6. Set Up Bar Types and Shapes
Use a clear system for bar sizes and shapes. Metric projects may use names such as T12, T16, and T20. Other projects may use numbered bar sizes.
Common bar shapes include straight bars, L-bars, U-bars, closed ties, stirrups, dowels, and hooked bars. Shape-driven rebar is often easier to edit, mark, schedule, and show on drawings. Free-form rebar can help with curved or unusual concrete. Use it only when standard shapes cannot show the required bar form.
7. Create Partitions and Naming Rules
Large projects may contain thousands of bars. Rebar partitions help divide the bars into clear groups. Bars may be grouped by floor, zone, concrete pour, element type, or drawing package.
Clear names may include:
FOUNDATION-ZONE-A
LEVEL-01-COLUMNS
LEVEL-02-BEAMS
CORE-WALLS
Clear partitions make schedules easier to read. Do not fix final bar marks too early. Changes in length, shape, size, or hook type may create new marks.
8. Create Rebar Working Views
Do not model all reinforcement in one busy view. Create separate views for foundation bars, slab top bars, slab bottom bars, beams, columns, walls, and joints. A 3D view with a section box is also useful for checking a small area.
Working views may use transparent concrete, filters, and hidden elements. Final drawing views should follow the project rules for text, lines, tags, and symbols. For larger projects, outside BIM modeling services can help teams create and manage these views across several structural zones.
Modeling Rebar by Structural Element
Foundation Reinforcement
Foundation reinforcement is often modeled first because column and wall starter bars begin there. Start with the main bottom bars in both directions. Then add top bars, edge bars, local strengthening, and starter bars.
Check cover, spacing, embedment, lap zones, and starter-bar height. Display the wall or column above while checking the starter bars. This can show alignment problems early.

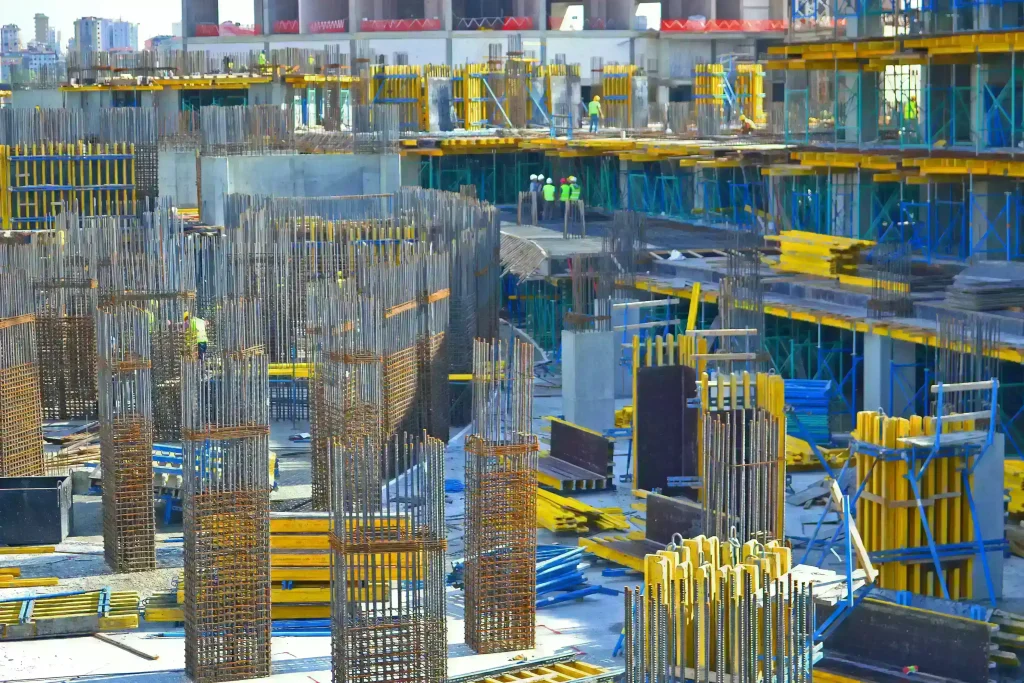

Column Reinforcement
Column reinforcement often includes vertical bars, ties, crossties, laps, and couplers. Begin with the corner bars. Add the remaining face bars, and then create the tie sets.
Tie spacing may become closer near joints and lap areas. Review each column where it meets beams and slabs. These areas can become crowded because several bar systems meet in one space. Copied reinforcement also needs checking. Two columns may have the same size but different joint conditions.
Beam Reinforcement
Beam reinforcement may include top bars, bottom bars, support bars, stirrups, side bars, and hanger bars. Place the main top and bottom bars first. Then add support and local bars.
Stirrup spacing often changes along a beam. Separate rebar sets can be used for each spacing zone. At beam ends, check anchorage, hook direction, bar ends, and clashes with slab or column bars.
Use beam elevations, sections, and 3D views together.
Slab Reinforcement
Slab reinforcement may use area reinforcement, path reinforcement, rebar sets, or single bars. Area reinforcement works well in large zones with regular spacing.
Path reinforcement is useful along slab edges and support strips. Rebar sets give more control near columns, openings, drop panels, and odd slab shapes.
Divide large slabs into smaller zones. This makes changes easier and helps produce clearer drawings. Check slab reinforcement in both plan and section. Confirm the direction, layer, and height.
Wall Reinforcement
Concrete walls often have vertical and horizontal bars on both faces. They may also need boundary bars, starter bars, couplers, and extra reinforcement around openings.
Check the wall direction before adding bars. A reversed wall may place the inner and outer reinforcement on the wrong sides. Use regular sets for the main wall bars. Model boundaries, corners, and openings as separate groups when more control is needed.
Review core-wall corners in 3D because several reinforcement layers may meet in a small area.
Choosing the Right Revit Rebar Tool
| Revit Tool | Good Use | Main Benefit | Main Check |
| Single rebar | Local bars and special details | Gives direct control | May take longer to update |
| Rebar set | Repeated bars in beams, columns, and walls | Easy spacing changes | Check direction and extent |
| Area reinforcement | Large slab and wall zones | Fast for regular layouts | Check odd boundaries |
| Path reinforcement | Bars along an edge or strip | Follows a set route | Check start and end points |
| Free-form rebar | Curved or unusual shapes | Fits complex geometry | Check schedule needs |
Most projects need more than one tool. Choose the method based on the concrete shape, bar layout, and level of control needed.
Managing Laps, Anchorage, and Couplers
Laps and couplers can create crowded reinforcement zones. The model may need to show lap length, lap position, hook length, anchorage, starter-bar height, and coupler location.
These values must come from the approved structural design. Do not choose a lap length only because it fits the available model space.
The team should also check whether workers can place the bars and whether concrete can flow between them. When an area is too crowded, the engineer may review staggered laps or mechanical couplers. Any change needs approval.
Creating Rebar Schedules
A rebar schedule may show bar marks, sizes, shapes, lengths, quantities, levels, hosts, and partitions. Schedules can be divided by floor, pour, zone, or structural element.
Check every schedule filter. A schedule may look correct while missing bars from another phase or partition. Also check bars that look almost the same but have different marks. A small change in length, shape, or hook may be the cause.
Readers who need more detail can review this article about creating and reading a bar bending schedule.
Preparing Drawings and Project Records
Construction drawings should clearly show bar size, mark, spacing, direction, layer, and extent. Laps, hooks, and section locations should also be easy to read. Use an enlarged detail when a joint or opening becomes too crowded at the normal drawing scale.
After construction, project teams may also need as-built drawings to record approved site changes and the final built condition. A clear project record can help with future repair, maintenance, and building changes.
Clash Detection and Buildability
Rebar clash detection should include more than bar-to-bar checks. Review reinforcement against pipe sleeves, anchor bolts, steel plates, cast-in channels, structural steel, and post-tensioning parts.
Not every crossing is a real clash. Some bars are meant to cross or touch. The results need to be reviewed by someone who understands the structure and how it will be built.
For a wider look at this process, read the comparison of traditional and digital BIM clash detection.
The team should also ask:
- Can workers place the bars in the shown order?
- Is there room to pour and compact concrete?
- Can workers reach the couplers?
- Can the bar cage be lifted safely?
- Is there space for normal site tolerance?
Contractors and fabricators can give useful advice in heavily reinforced areas.
Model Collaboration and Project Rules
Large teams need a clear way to share models, comments, and updates. A shared cloud system can help teams track issues and work from current files. This article on BIM 360 explains how cloud-based BIM tools can support construction teams.
Projects may also have owner, contract, or government rules for model formats and data delivery. Teams working on public work can review common points related to federal BIM compliance.
Strand Consulting Corporation can help project teams set up BIM workflows, model responsibilities, and delivery standards before detailed work starts.
Practical Tips for Better Rebar Modeling
Approve One Sample First
Finish one beam, column, footing, wall, or slab zone before modeling every similar element. Ask the engineer or checker to review the sample. This can find problems with bars, tags, views, and schedules before they are copied across the project.
Use a Project Template
A useful template can hold approved bar types, shapes, cover settings, tags, filters, and schedules. This gives each modeler the same starting point and reduces duplicate content.
Use Filters for Model Checks
View filters can help find bars with the wrong size, no partition, or missing review data. This is useful in large structural models where small errors may be hard to see.
Record Open Questions
Keep a clear list of missing design data, assumptions, and engineer replies. This lets the team see what has been approved and what still needs action.
Add Final Bar Marks Later
Wait until the main design and coordination work is stable before fixing final bar marks. This reduces repeated numbering changes and makes schedules easier to manage.
Involve Site Teams Early
Ask the contractor or fabricator to review crowded areas before drawings are issued. Their input may find access, lifting, or concrete placement problems that are not clear in normal model views.
When Rebar and BIM Support Can Help
Large concrete projects can need many hours of modeling, checking, and drawing work. A structural BIM team may help with reinforcement modeling, schedules, quantity reports, clash reviews, drawing updates, and model quality checks.
Strand Consulting Corporation provides rebar detailing support for teams that need added modeling and documentation capacity. Before choosing a service provider, review its structural experience, software skills, checking process, revision control, and data security.
The BIM team should work from approved design information. It should not make hidden changes to the structural design.
Quality Checks Before Issue
The final review should cover the model, schedules, and drawings. In the model, check the host, cover, bar size, spacing, layer, laps, hooks, and couplers. Remove test bars, old bars, and duplicates.
In the schedules, check marks, lengths, quantities, filters, and partitions. Review any large or unexpected change in steel weight. In the drawings, check tags, notes, sections, and revision data. Remove old details that no longer match the model. A written checklist helps the team use the same process on every project.
Conclusion
Rebar detailing in Revit can help structural teams create clearer drawings, useful schedules, and better 3D coordination. Start with approved design data and a stable concrete model. Set the correct cover before placing bars. Use clear bar types, standard shapes, and logical partitions.
Then review openings, joints, laps, clashes, schedules, and site access before issue. A good reinforcement model should not only look correct on screen. It should be easy to review, easy to understand, and practical to build.
